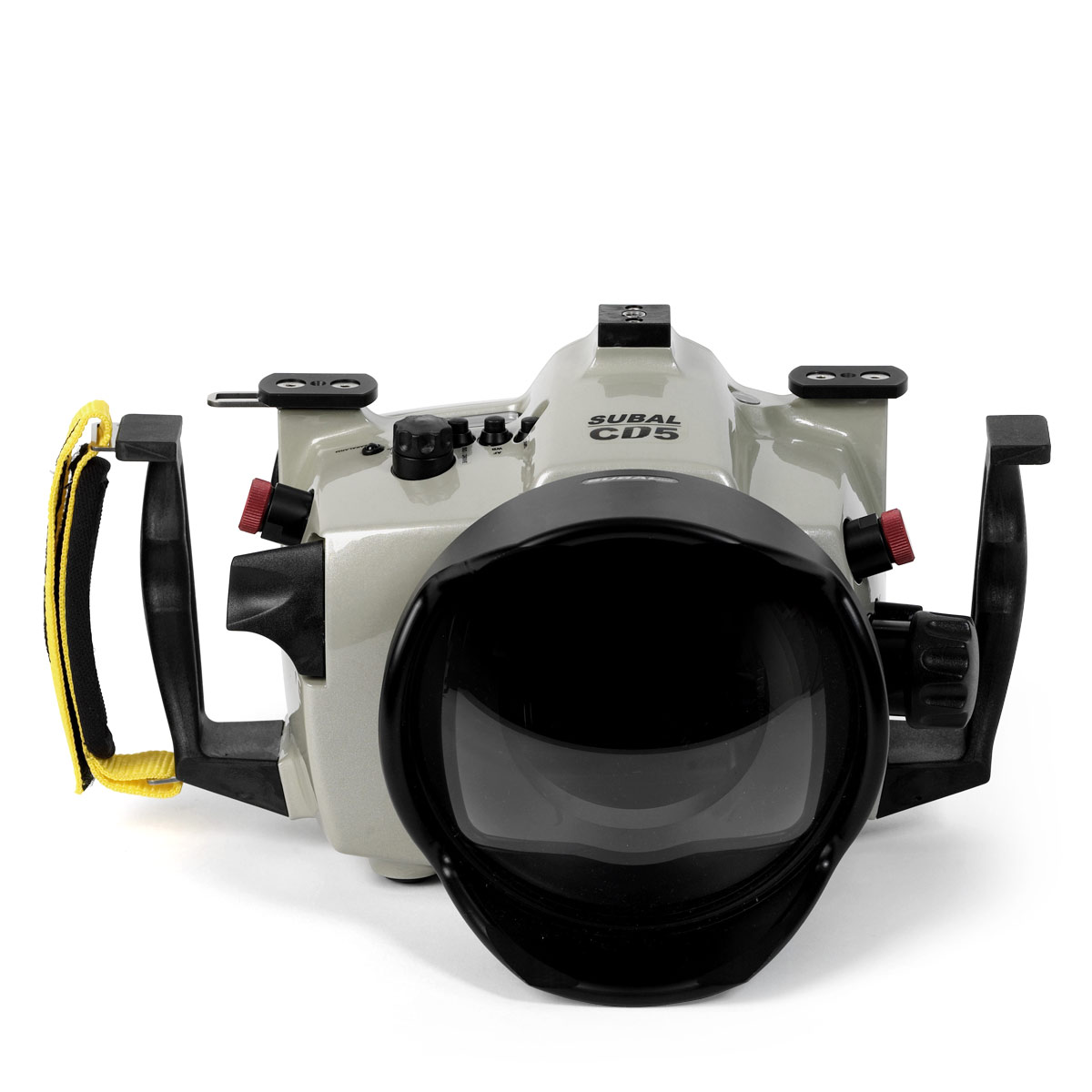

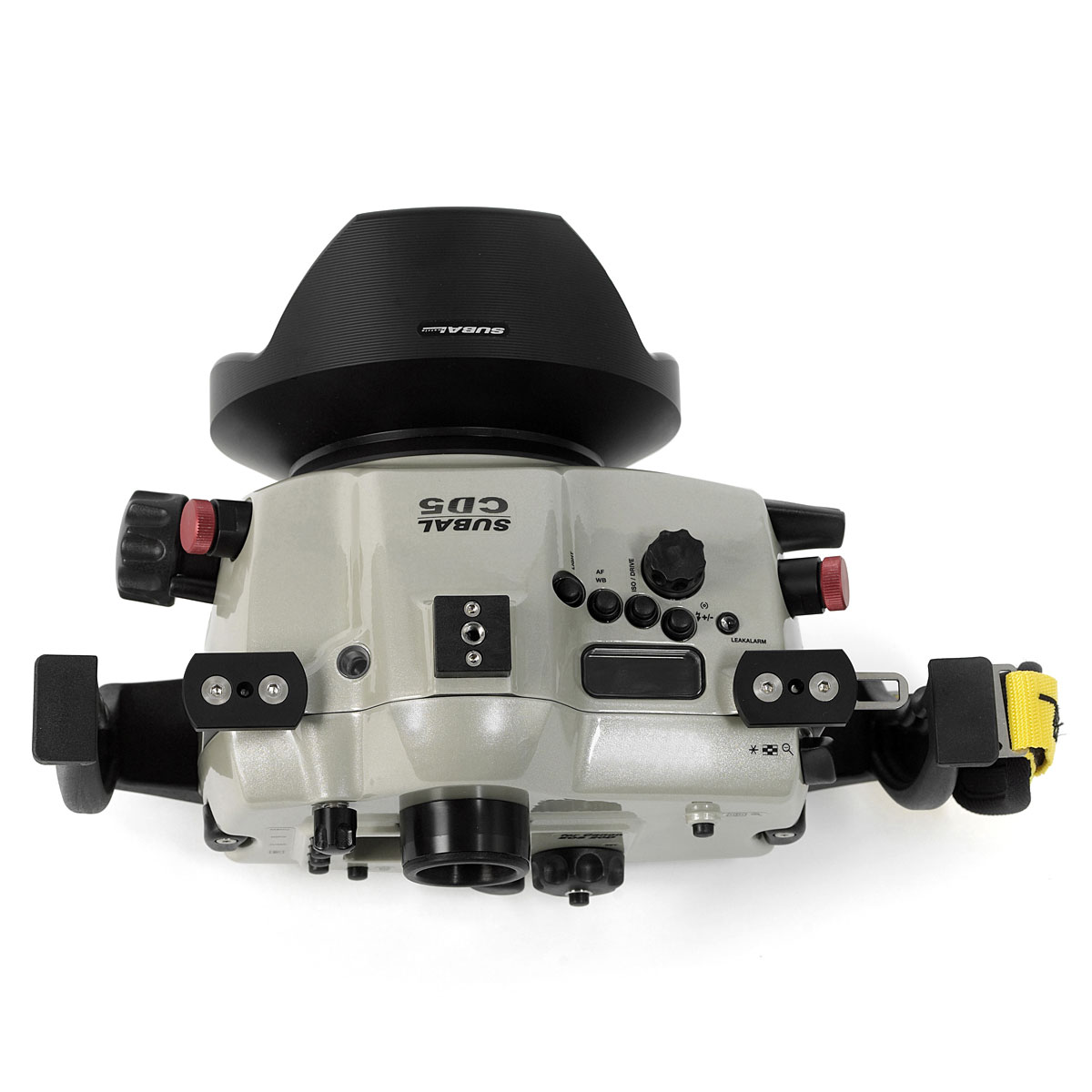

The ergonomic SUBAL design and arrangement of all important elements of the housing allows the camera easy operation without letting go of the handle. The camera is mounted on a special sled, to secure the camera with precision into the housing. This allows a faster and secure mounting. A 4 mm O ring and the
SUBAL Quick Lock closure system, prevents accidental crushing of the O-ring and ensures maximum safety.

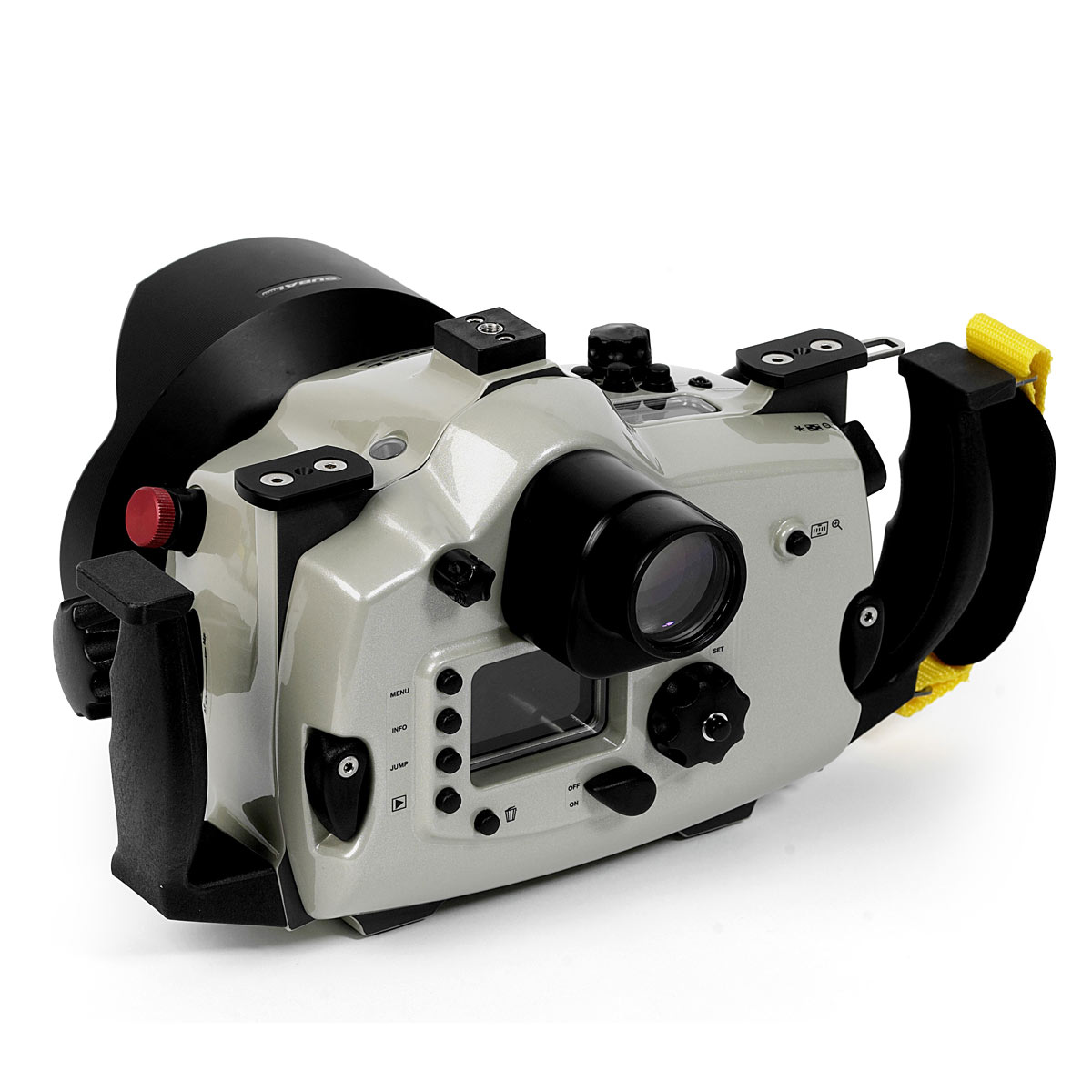

The Subal monitor window provides a glare-free view to the brilliant image of the camera monitor and supports so ideally the HD-video function of the camera.Pilot lights can be attached or mounted to the top shoe.
Only high quality materials are used to produce Subal housings. A precise manufacturing process followed by the surface protection finish, to conform the standard quality level that you get in every SUBAL product.
SUBAL offers for this housing model, 3 different search systems:
the standard viewfinder slimmed the viewfinder image, so that it can fully be overlooked despite diving mask. The GS 180 and the 45° viewfinder offer a view in size approximately corresponding to the camera’s viewfinder, with the insight of the GS-180 horizontally, the insight of the WS-45 under 45 °.
Technical data:
Seawater resistant aluminum alloy machined from the block. Hard coating and corrosion treatment is applied to the surface of the housing. In addition 3 layers of powder coating paint are applied to give the housing the unique SUBAL color and finish. All parts are made of hard-anodized light alloy, acid-resistant stainless steel and high quality plastics, to endure all working conditions. SUBAL QuickLock closure system.
Width x height x depth:
Approx. 240 x 175 x 140 mm
(w/o port and handles)
Flash connection:
2 Flash connectors: Optionally Nikonos V, IKELITE or subtronic S6 Sockets connected in parallel.
Flash arm mounting:
2 x T-plates 25 mm, TLC – or ultralight base optional
Transmission and features:
Main switch, trigger, front and rear main dial, manual focus/zoom, mode dial, lens release, AE lock.
Push buttons for:
Backlight, AF/WB, drive ISO, metering mode/flash compensation, menu, info, jump, play, delete, AF points, set.
