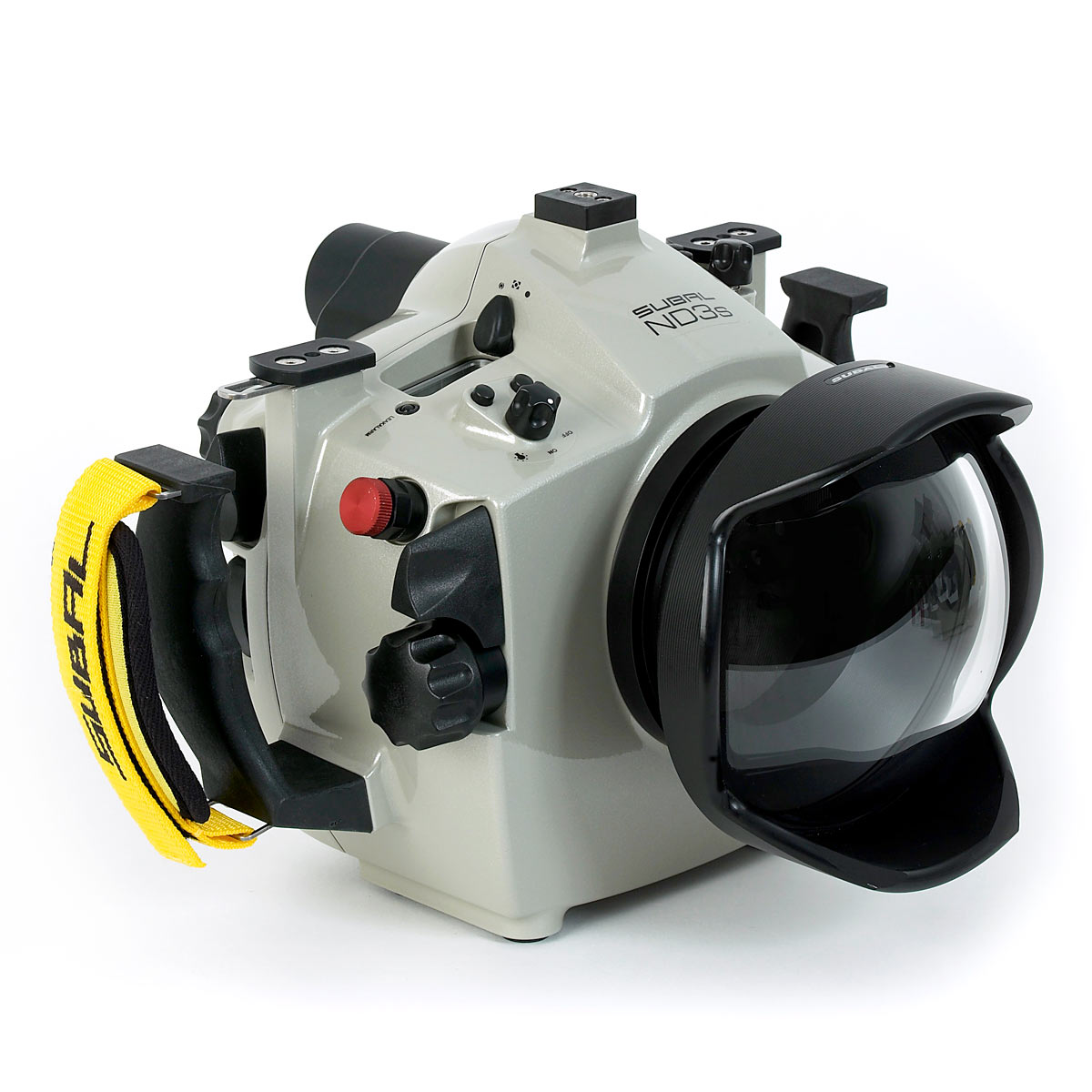

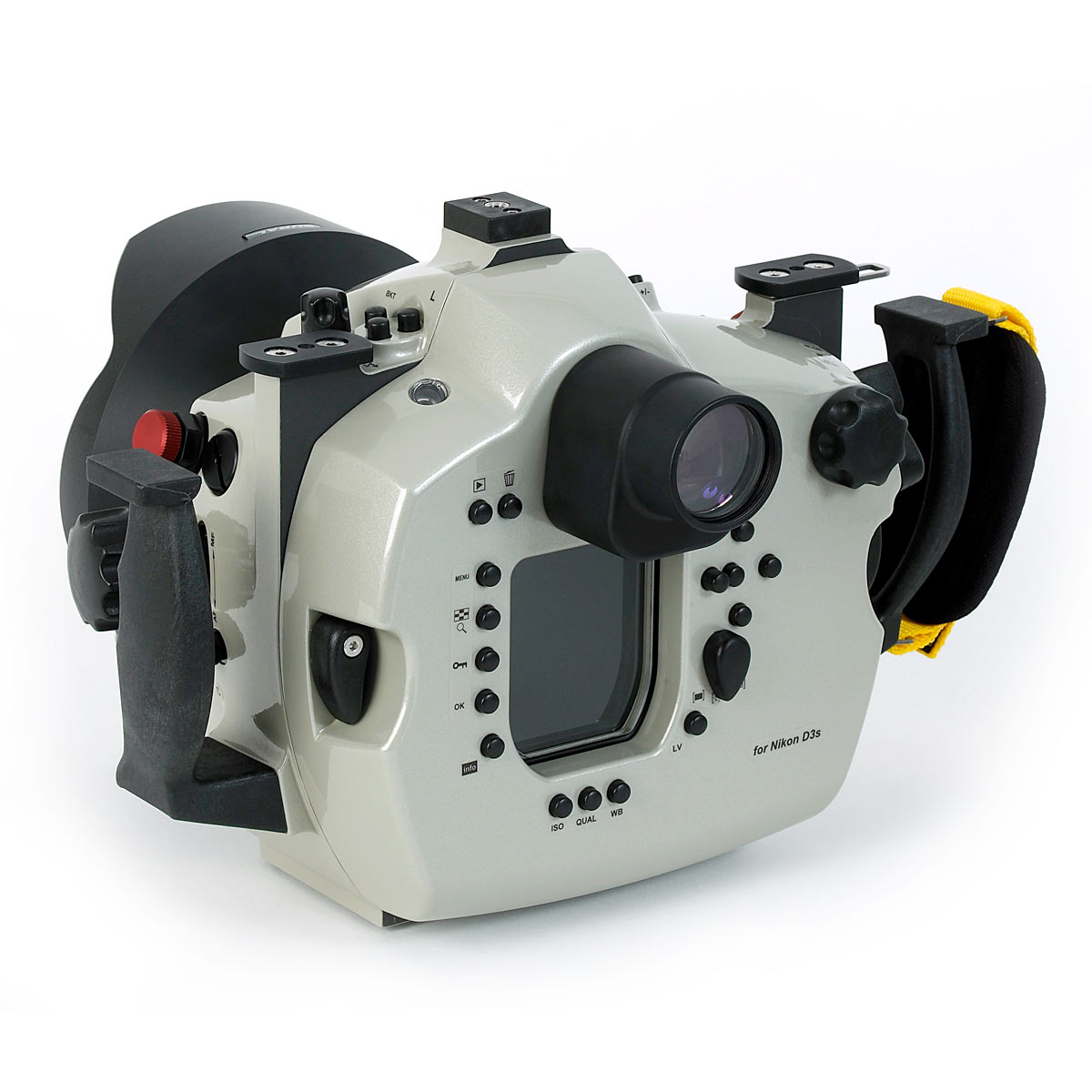

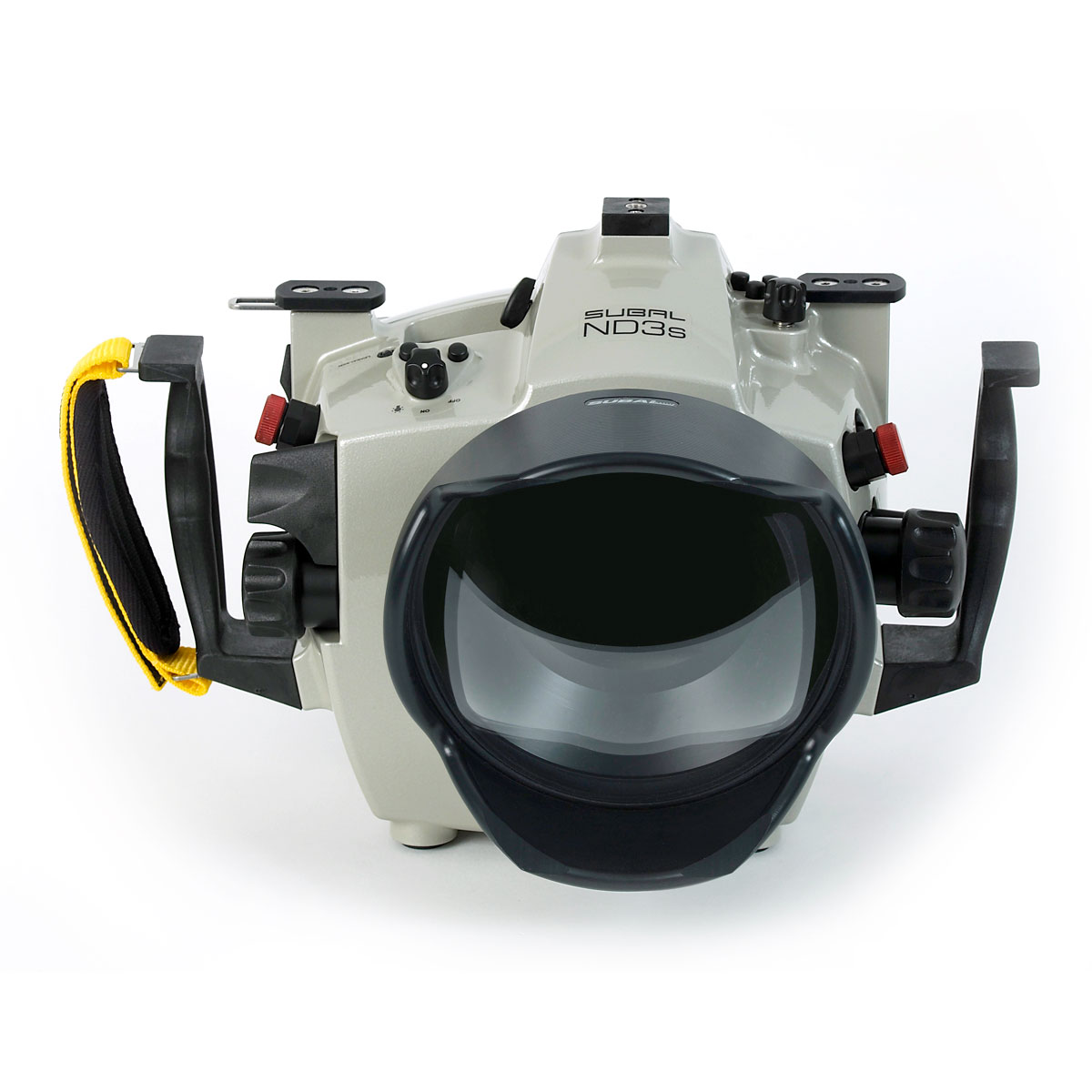

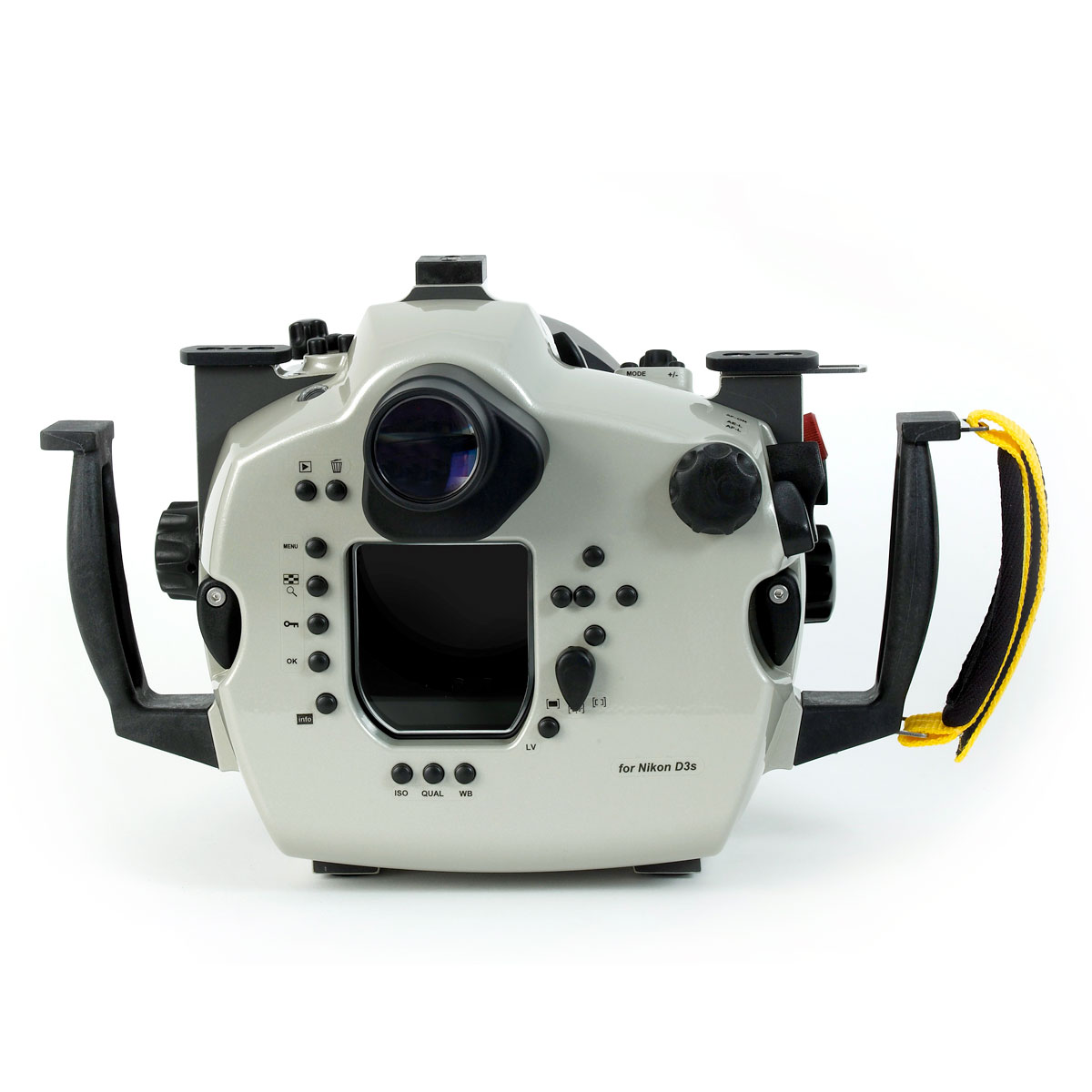

ND3s

With the SUBAL ND3s for the Nikon D3s SUBAL offers SLR cameras from Nikon, so an aluminum housing for the latest development of the compact full frame without any restrictions in the angle! There is no limit to the creativity of the underwater photographers.

Maximum depth: 70 m (120 m on request)

Weight:  Approx. 2.7 kg (w/o port and accessories)

Weight in water: Nearly neutral (depending on the port and accessories)

3.990,00  Export Price out of EU | 4.788,00  (incl. VAT)

The housing ND3s provides access to all functions of the Nikon D3s with Liveview and info. Existing SUBAL ND3 UW housing can be upgraded by replacing the housing rear wall for the Nikon D3s. The ergonomic SUBAL design and arrangement of all important elements of the housing allows the camera an easy operation without letting go of the handle. The camera is mounted on a special sled, to mount the camera with precision in the housing, this allows a more faster and secure mounting. A 4 mm O ring and the SUBAL QuickLock closure system, prevents accidental crushing of the O-ring, and ensures maximum safety. Threaded holes at the base allows attaching Rails etc. Pilot lights can be attached or mounted to the top shoe. The monitor window provides a glare-free and high-contrast insight on the camera monitor. Material selection, processing, surface protection and finish conform to the usual standard level of quality that is all the SUBAL products. SUBAL offers for this housing model for the first time, 4 different search systems: the standard viewfinder slimmed reduces the viewfinder image, so that it can fully overlooked despite diving mask. The GS 180 and the 45° viewfinder offer a viewfinder in size approximately corresponding to the camera’s viewfinder, with the insight of the GS-180 horizontally, the insight of the WS-45 under 45°. The new Prism Finder PS-30 shows the camera monitor image at the same size at a viewing angle of 30°. The insight is with normal reading distance, which is why the PS-30 is ideal for video recording. All Subal viewfinders systems are interchangeable and can be mounted easily by the user. All SUBAL ports with bayonet mount on this case can be used (except DP-FE2).



Technical data:

Seawater resistant aluminum alloy worked from the block. Hard Coating and corrosion treatment is applied to the surface of the housing. In addition 3 layers of powder coating paint is applied to give the housing the subal color and unique finish. All parts are made of hard-anodized light alloy, acid-resistant stainless steel and high quality plastics, to endure all working conditions. SUBAL QuickLock closure system.

Width x height x depth:

Approx. 255 x 230 x 165 mm (w/o port and handles)

Flash connection:

Optionally Nikonos V, IKELITE or subtronic S6 Sockets connected in parallel

Flash arm mounting:

2 x T-plates 25 mm, TLC – or ultralight base optional

Transmission and features:

Main switch/backlight, shutter, zoom (manual focus), front and rear main dial, lens release, focus mode (M-S-C), AF mode, metering, operation voters of types of, AF-lock, AF-ON.

Push buttons for:

Mode, exposure compensation, bracketing, Flash sync mode, lock, playback, delete, menu, thumbnail, protect, OK, ISO, quality, white balance, multi function button.
