XT2

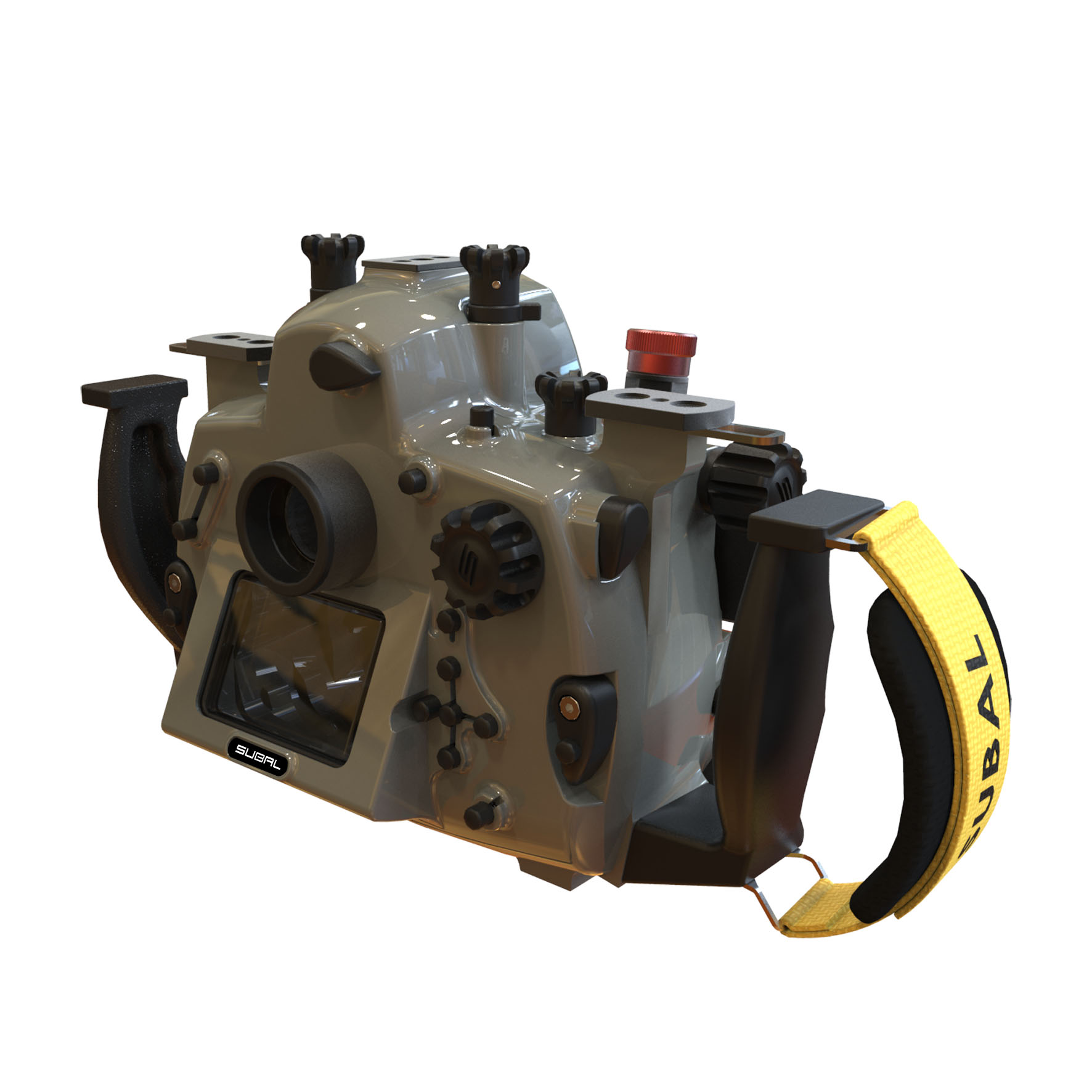

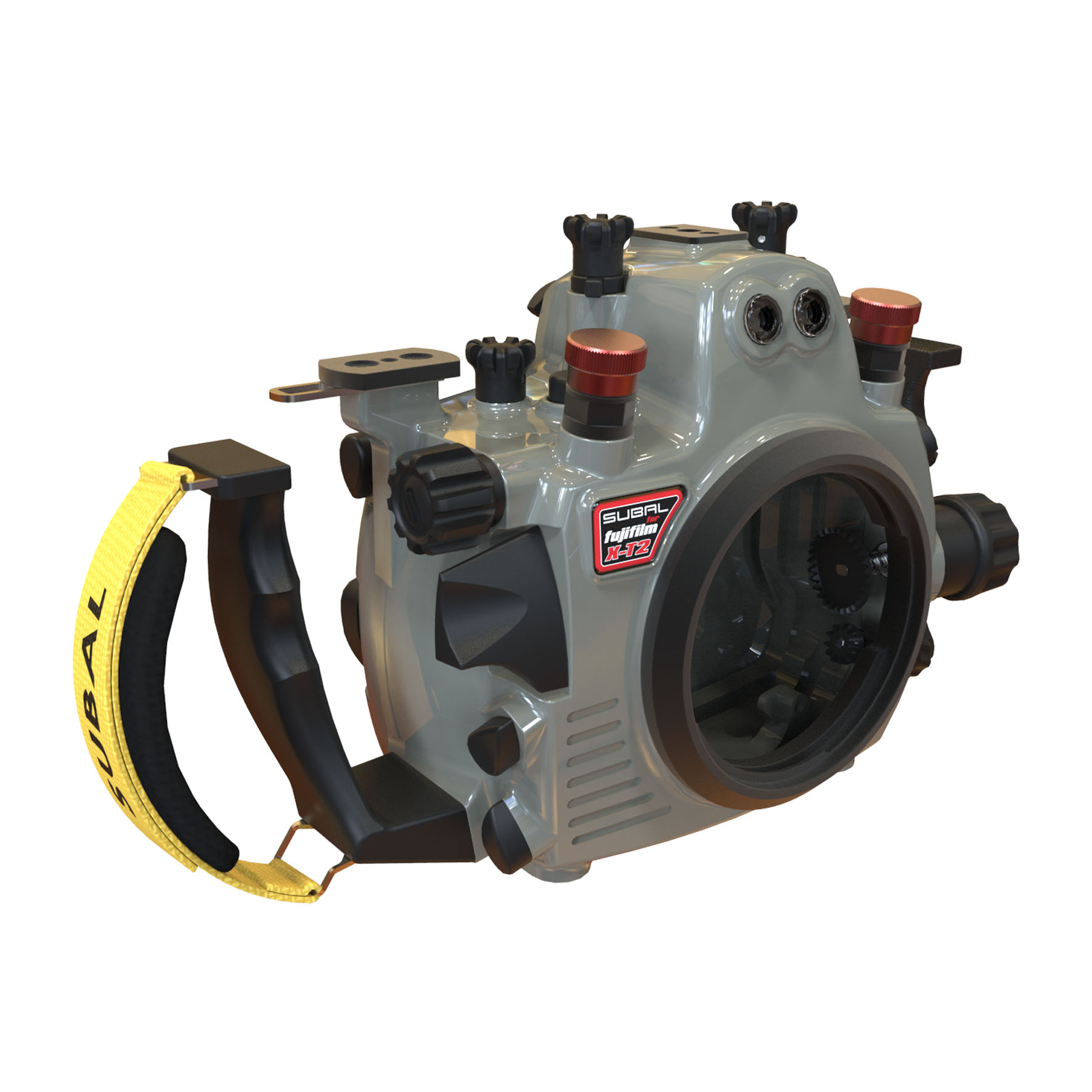

The XT2 housing provides access to all the functions of the Fujifilm X-T2. The ergonomic SUBAL housing design and arrangement of all the key controls allows easy camera operation without letting go of the grip. The camera is fitted on a special cradle which enables a precise and faster, more secure mounting. A 4mm O-ring and the SUBAL Quick-Lock closure system prevents accidental crushing of the O-ring and ensures maximum safety. Threaded holes at the base allow the attachment of a tray. Focusing lights can be attached or mounted to the top shoe. The monitor window provides a glare-free and high-contrast view of the camera monitor. Material selection, processing, surface protection and finish conform to the usual high-quality that is common to all SUBAL products. SUBAL XT2 is equipped with bayonet type 3.

Technical Data:

Seawater-resistant aluminum alloy worked from a solid block. Hard-coating and corrosion treatment is applied to the surface of the housing. In addition 3 layers of powder-coating paint is applied to give the housing the Subal color and unique finish. All parts are made of hard-anodized light alloy, acid-resistant stainless steel and high-quality plastics to cope with the marine environment.

Width x height x depth:

Approx. 210 x 184  x 132 mm  (w/o port and handles)

Strobe connections:

2 Sea & Sea Optical Ports. 1 strobe connectors optionally Nikonos V, IKELITE or Subtronic S6 Sockets.

Flash arm mounting:

2 x T-plates 25 mm, TLC – or Ultra light base optional shoe

Transmission and features:

All functions of the camera can be operated. In particular: main switch/backlight, shutter, zoom (manual focus), front and rear main dial, lens release, focus mode (M-S-C), AF mode, metering, AF-lock, AF-ON, port-lock, photo/video switching.
